How to Easily Understand Your Camera Autofocus Modes

A- A+
Related course: Photography for Beginners

Modern DSLR cameras have a staggering amount of autofocus modes for you to choose from. How do you sift through them? When do you choose single focus over continuous focus?
No idea what that even means?
This is the article for you. We’ll make your camera’s autofocus modes simple and easy to understand. You’ll learn when and how to use them for the best photography results.
So read on to understand more about autofocus.

Why Bother With Autofocus Mode Over Manual Mode?

Focusing is choosing the part of your photo that will be sharp and well defined. Our brains usually prefer sharp images over blurry. A well defined subject draws attention, and is the most important part of the composition.
Mastering autofocus system will allow you to better convey the message of your image. It will also save you from deleting lots of blurry photos!
A blurry photo of a purple flower

A sharp photo of a purple flower shot using correct focus - autofocus mode
If you compare this photo with the one above you clearly see the importance of using correct focus, which photo do you like looking at better?

Focusing manually gives you more control but it is an acquired skill. There’s a steep learning curve. Basically you focus by turning the ring on your lens (in DSLR cameras) until you see in focus the part of the photo.
It gives you more freedom for artistic effects, or to take photos in difficult situations, like low light conditions. But struggling with manual focus at the beginning can cause you to miss key moments.
This is where autofocus comes in.

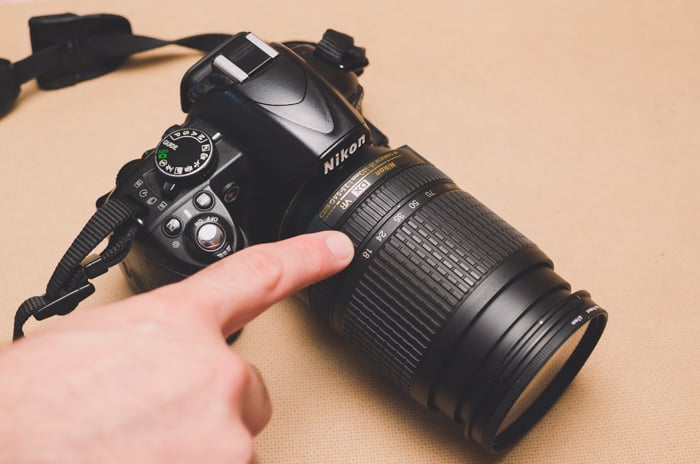

A person pointing to autofocus mode on a Nikon DSLR
Autofocus is a practical option that will allow you to focus much faster. You will be able to pay attention to other things like composition and exposure.
You can switch between manual and autofocus either through the lens or through the camera itself. Depending on your camera model, you’ll have a dedicated button or can access this through the menu.
A close up of autofocus mode on a Nikon DSLR

What Is AF All About?

When you set the focus, you arrange the glass parts in your lens so that specific light beams meet on the sensor. Beams that reach the lens from different distances require different arrangements.
In other words, focus is a matter of distance of the objects from the lens. In autofocus mode you select pre-determined “focus points”. The number of these points depends on your camera you have.
You can see them through the viewfinder. Your camera will focus on the area that is in front of the focus point you selected.

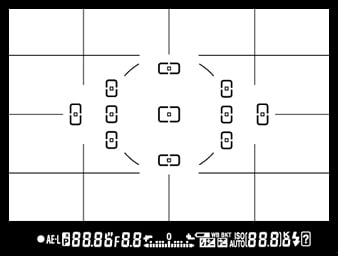

Camera Focus point display
Focus point display. Photo credit: Nikon (https://imaging.nikon.com/lineup/dslr/basics/16/02.htm)

How to Select the Best Focus Area for Your Subject

Digital these days have very advanced autofocus modes. They offer more options than just selecting one focus point.

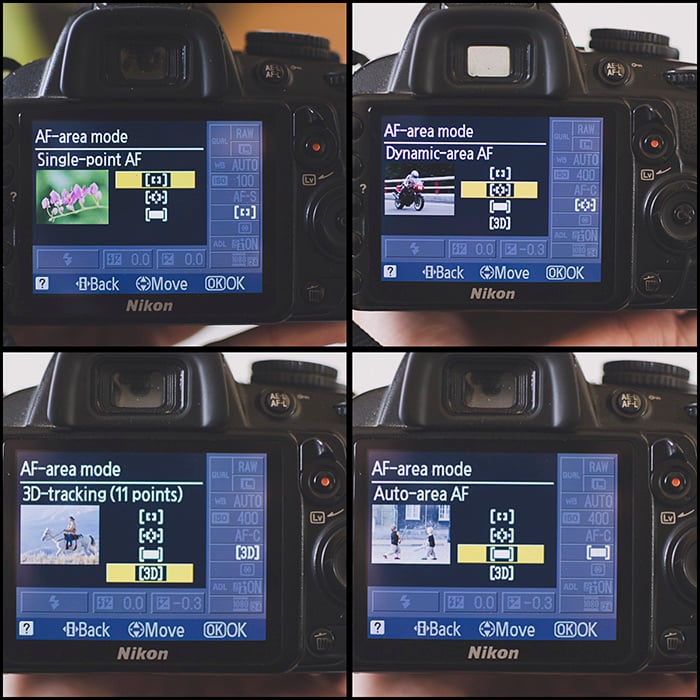

A 4 photo grid showing how to change autofocus modes on a DSLR

  • Single-Point AF-Area Mode (Manual AF-Point in Canon). The camera will only use the focus point you’ve selected.
  • Dynamic AF-Area Mode (AF Point Expansion in Canon). You also select one focus point. But in this mode, if your subject moves a little, the camera will use the surrounding focus points to focus. You need to track the subject with your camera. This way, you can make sure that it remains close to the first selected focus point. If not, your camera won’t be able to refocus.
  • 3D Tracking. You select the first focus point and your camera, using an algorithm, tracks your subject while moving. There’s a risk that your camera will ‘jump’ to another subject and ‘decides’ to focus on it instead.
  • Auto- area AF. This mode is completely automatic. The camera decides for you what focus points are going to be used. It chooses the subject in the photo according to contrast differences. I do not use this mode often. I like to keep some control over what to focus on.

Use Single-Servo AF (Nikon, AF-S) or One-Shot AF (Canon) for Static Subjects

Most cameras have different autofocus modes to help you focus in different situations. You can select one either through the camera settings menu or with a button dedicated to it.
The most common autofocus modes options are : AF-S (single point), AF-C (Continuous) or AF-A (automatic).
The basic option is the AF-S. With it selected, you focus using one focus point. The camera will allow you to choose the focus point (probably using some arrow buttons or a dial).
This autofocus mode has the advantage that it allows you to block the focus when you half-press the shutter release. This is handy when you want to reframe the image without losing the focus point.
AF-S mode is useful when the subject of your photo is not moving (landscape, still photography) or it moves just a little (static portraits).
A female model posing on the beach shot using af mode

Use Continuous Servo AF (Nikon, AF-C) or AI Servo (Canon) With Moving Objects

Another camera focus option is Continous (AF-C). This is especially useful when the subject of your photo moves around. Think sport events, vehicles, animals, or kids.
The camera does not lock the focus point when you half-press the shutter release. Instead, it tracks your subject and refocuses accordingly.
Remember that when you select this autofocus option, you can’t lock the focus. This means that you can’t reframe.

A girl in sports clothes jumping energetically on the beach shot using af mode

What About Autofocus Automatic (Nikon, AF-A) or AI Focus AF (Canon)?

There is a third option: the Autofocus Automatic. Your camera will select Single or Continuous AF if it detects the subject as stationary or moving respectively.
This might seem like a great option, but it leads to confusion. The camera switches between the two AF modes.
This makes it hard to know if half-pressing the shutter release will lock the focus or track the subject.

How to Combine Autofocus Modes With Focus Areas for Better Photos

Now it is time to put the Autofocus mode and autofocus area together.

Single Point Area + AF-S Mode

Perfect for stationary subjects such as landscapes and still photography. I also use it in portraits where the model is not moving fast.
You choose one focus point and the camera won’t refocus.

A colorful city street view - understand autofocus mode
Single Point Area+ AF-C Mode

Ideal for when your subject is moving, like animals, kids, sports, etc. Also handy in nature photography for windy days.
You select one focus point and your camera will refocus if needed if the subject moves.
It will refocus only on the selected focus point, so you need to track the subject.
A close up of plants outdoors - what is autofocus mode

Dynamic Area + AF-C Mode

Useful when the subject is moving in an unpredictable way. Select one focus point and the camera will use also the surrounding ones if the subject moves.
You might be wondering why you should not use this all the time. Since the camera can track the movement and refocus accordingly (selecting Continuous mode and a 3D Tracking/Dynamic area).
Why bother switching to one single focus point?
If your subject is not isolated in the frame, your camera can get confused. It might end up tracking another subject you are not interested in.
For that reason, the one single focus is still more precise than the dynamic area/3D tracking. If your subject is not moving, you have better chances for a sharper image.

Which Combinations Not to Use

Dynamic Area + AF-S Mode
Although your camera might let you select this combination, these 2 options are incompatible. On one side you are telling the camera to use an area of using several focus points to refocus if needed (dynamic area). But you are not allowing it to refocus (AF-S mode has not this option).
The dynamic area will get disabled and it will works as a Single-Point.
If you select this option because your subject is moving you can miss the shot. Your camera is working as if it were in Single Point Area+AF-S Mode (the one for static subjects).
3D Area + AF-S Mode
Same as with the previous, the camera won’t refocus. The 3D Area will get disabled and you’ll be taking photos like in Single Point Area+AF-S Mode.

How to Autofocus in Live View

Autofocus mode work slightly differently when you’re using Live View. In this case, you can select any point on the screen to focus on and not just the predefined focus points.
Live view autofocus mode works by detecting contrast in the scene while the viewfinder autofocus technology is based on phase shift sensors. Live view focusing is slower. But it is also more accurate for static subjects.
I recommend using it with AF-S mode. When selected, you will see a red square you can move around the screen using the arrow bottoms.
When it is in focus it will appear green and then it’s time to shoot!

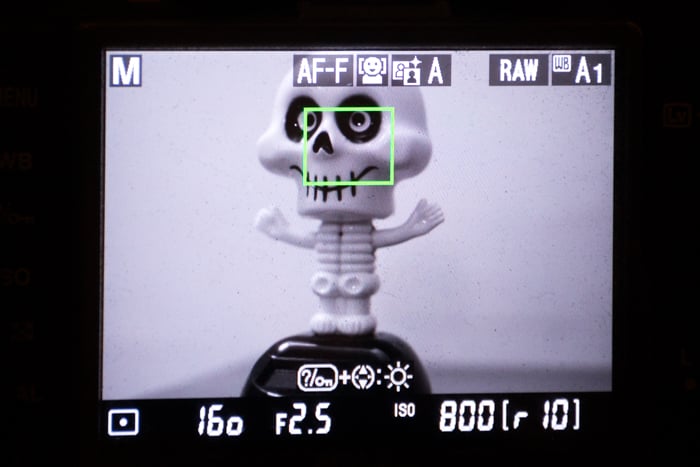

Close up of adjusting autofocus modes on a camera while focusing on a plastic figure of a skeleton

How to Use Autofocus Modes in Low Light Situations

In low light situations, your autofocus might go a bit crazy. Your lens will go into a loop looking for focus without success.
In these cases the AF-Assist built-in light can be really useful. Turn it on through your menu. When activated, your camera will send out an orange-red light that will point to your subject. This will help you focus.
But it’s not a perfect solution. It selects the AF-S Mode and focuses using the central focus point. It has a limited range too, so you need to be relatively close to your subject (0.5-3m).
An alternative you could use is to briefly illuminate the point you want to focus on using a flashlight or some other light source.
A wedding photo in low light shot using autofocus modes

Conclusion

Getting familiar with the autofocus modes that your camera offers will allow you to take sharper images.
Select an autofocus area according to how your subject behaves. If it is static, use a single focus point and combine it with the Single-Servo Mode (to lock the focus when you half-press the shutter release) or the Continuous mode (to allow the camera to refocus on that point if the subjects moves slightly).
If your subject is moving, it might be better to track its movement. To do so, try either the dynamic area or the 3D tracking together with the Continuous Autofocus Mode.

Looking for more tips? Check out our new post about focus shift and how to test your camera for autofocus issues next!
