When it comes to photography, there are a few key concepts that you need to understand to take great photos. One of these is the difference between rolling shutter vs global shutter.
In this article, we’ll explain each one. And we show you how to choose the right option for your needs.
First, I must be clear on one thing. I’m talking about electronic shutters rather than mechanical shutters. Mechanical shutters are different. They have their own problems, like the limit on the flash sync speed. This is usually only 1/200 s or 1/250 s.
The issues with rolling shutter and global shutter also have nothing to do with slow shutter speeds. Again, slow shutter speeds have their own problems. This includes motion blur. But that’s not what I’m talking about here.
Rolling shutter and a global shutter are different kinds of electronic shutters. We will try to explain the benefits and disadvantages of both.
Like a scanner, rolling shutter mode in digital cameras exposes pixels to light line-by-line. Cameras switch on the ones at the top of the sensor first and roll down to the bottom. Or two “waves” spread out from the middle of the sensor.
It works well in most situations. But you get a rolling shutter effect if subjects are moving around the frame quickly or if you pan the camera from side to side.
Camera manufacturers work hard to improve the readout speed of their sensors. But the rolling shutter problem will always remain.
This is because the light hits the pixels at different times. The ones at the top of the sensor are exposed and switched off first. But the ones at the bottom are exposed last and switched off last.
If nothing moves in the scene, it’s not a problem. But if something moves, different pixel rows record its position at different times and places. This leads to the rolling shutter effect—the image skewing from side to side.
The same happens if you pan the camera. It’s just the camera moving rather than the subject.
Imagine taking a picture of a rectangle moving quickly from left to right with a camera using a rolling shutter. When you press the shutter button, the exposure begins.
The camera sensor records the top of the rectangle using the top row of pixels. Those pixels remain active for the length of your shutter speed (time value). Let’s say it’s 1/1000 s.
The next row of pixels isn’t switched on until the first row has been. This delay is the “line time.” It might be something like 10 ms. (10 microseconds or 10 millionths of a second.)
When the first row is switched off, you get the same slight delay until the second row is switched off. If you multiply the line time by the number of rows of pixels on the sensor, you get the “frame time.”
A modern mirrorless camera like my Sony a1 has 5,760 rows. So the frame time would be something like 5,760 x 10 ms. This equals 57,600 ms (or 0.0576 of a second). That’s longer than the shutter speed!
As a result, the position of each successive part of the rectangle moves a bit to the right. So it turns it into a parallelogram!
Global shutter mode means exposing all the sensor pixels at the same time (globally). This means there’s no distortion in the final image when taking pictures of moving objects.
It’s a more expensive technology. And it means an awful lot of data is being thrown at the image-processing engine at the same time.
A global shutter camera also needs extra electronics. This makes it hard to use a backside illuminated (BSI) sensor. That’s a shame because these sensors are much better for low-light photography.

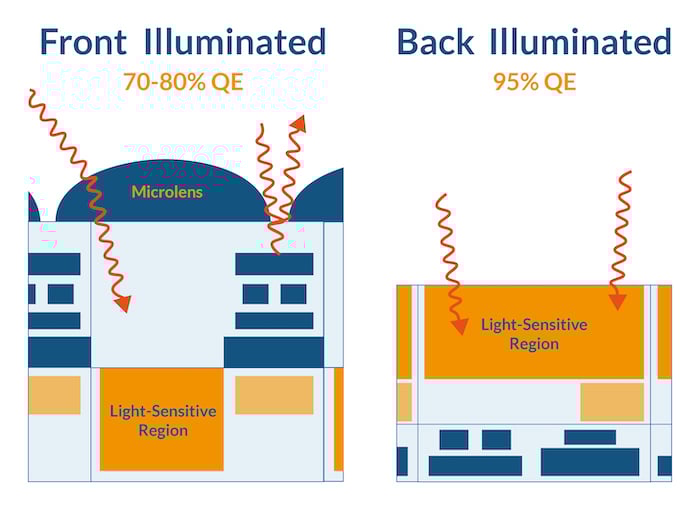

Placing the light-sensitive silicon layer closest to the light source lets them achieve 95% quantum efficiency (QE). That means losing only 5% of the original signal.
Global shutters have to use front-illuminated sensors. They must have microlenses and other electronic circuitry above the light-sensitive region. This limits their QE from 70 to 80%. This means 20 to 30% of the signal disappears.
You can’t have a global shutter sensor and a BSI sensor. So global shutters haven’t gone mainstream yet.
Another shutter type is the “pseudo-global shutter:” Teledyne Photometrics invented it. It’s available in their Prime and Kinetix rolling shutter cameras as an optional setting.
With the pseudo-global shutter, the sensor pixel rows are switched on one after the other. It’s the same as a rolling shutter.
But the readout only happens when they’re all active. So it’s the benefit of a true global shutter. But it comes at the expense of a lower frame rate.
The other solution to the rolling shutter vs global shutter problem is to make the shutter mode optional. This means you can decide yourself, depending on the subject and the type of shot.
Andor’s Neo, Zyla, and Balor’s CMOS cameras let you choose between global or rolling shutter. This is helped by what they call a five-transistor (5T) pixel architecture.
Each type of electronic shutter has advantages and disadvantages. The relative advantage depends on the application.
Most modern DSLR and mirrorless cameras have sensors with an electronic rolling shutter. This is because manufacturers think we’ll put up with the rolling shutter effect if we get better resolution and higher frame rates. And they’re probably right!

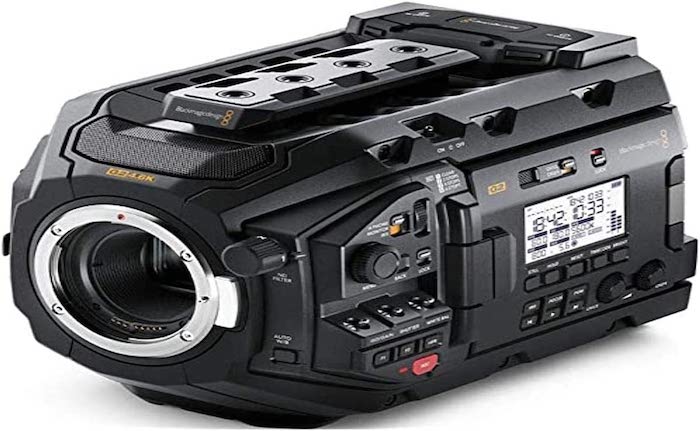

Dynamic range is also a factor. Blackmagic Design recently replaced the global shutter with a rolling shutter in their URSA Pro Mini 4.6K action camera to push the dynamic range up to 15 stops.
The only niche where manufacturers use global shutters is with Interline CCD or EMCCD sensor cameras. This is because frame rates aren’t as important. So the trade-off is different.
The best solution appears to be the optional shutter mode offered by Andor’s camera range.
Photographers have more information about the local conditions and the type of shots they take. This means they should be able to choose which shutter mode to use.
Things may soon change. According to the rumor mill, Canon’s new EOS R1 flagship mirrorless camera will have a global shutter rather than a rolling shutter.
This does mean the camera won’t be able to match the frame rates of the leading Nikon and Sony mirrorless cameras. But Canon obviously thinks the benefits outweigh the disadvantages.
When it comes to video, a global shutter is slightly more popular. Arri Alexa cameras are the most famous cameras used by Hollywood cinematographers. And they use a global shutter.
In an ideal world, cameras would all have global shutters. It makes sense for them to switch every pixel on and off simultaneously. And it would remove the distortion of rolling shutter mode.
That may happen in the future. And the advent of the Canon EOS R1 will give us a clue. Will it blaze a trail for global shutter cameras? Or will it end up on the technological scrap heap? We’ll have to wait and see.
More camera manufacturers like Andor may start offering global shutter mode as an optional setting instead. Photographers could then choose to put up with a lower frame rate to avoid rolling shutter effects. In the battle of rolling shutter vs global shutter, they both might end up on the winning side!
